Hertz Mille Legend Speaker & Amplifier Upgrade Package for Tesla Model Y 2020+

Hertz Mille Legend Speaker & Amplifier Upgrade Package for Tesla Model Y 2020+ (Standard Audio)

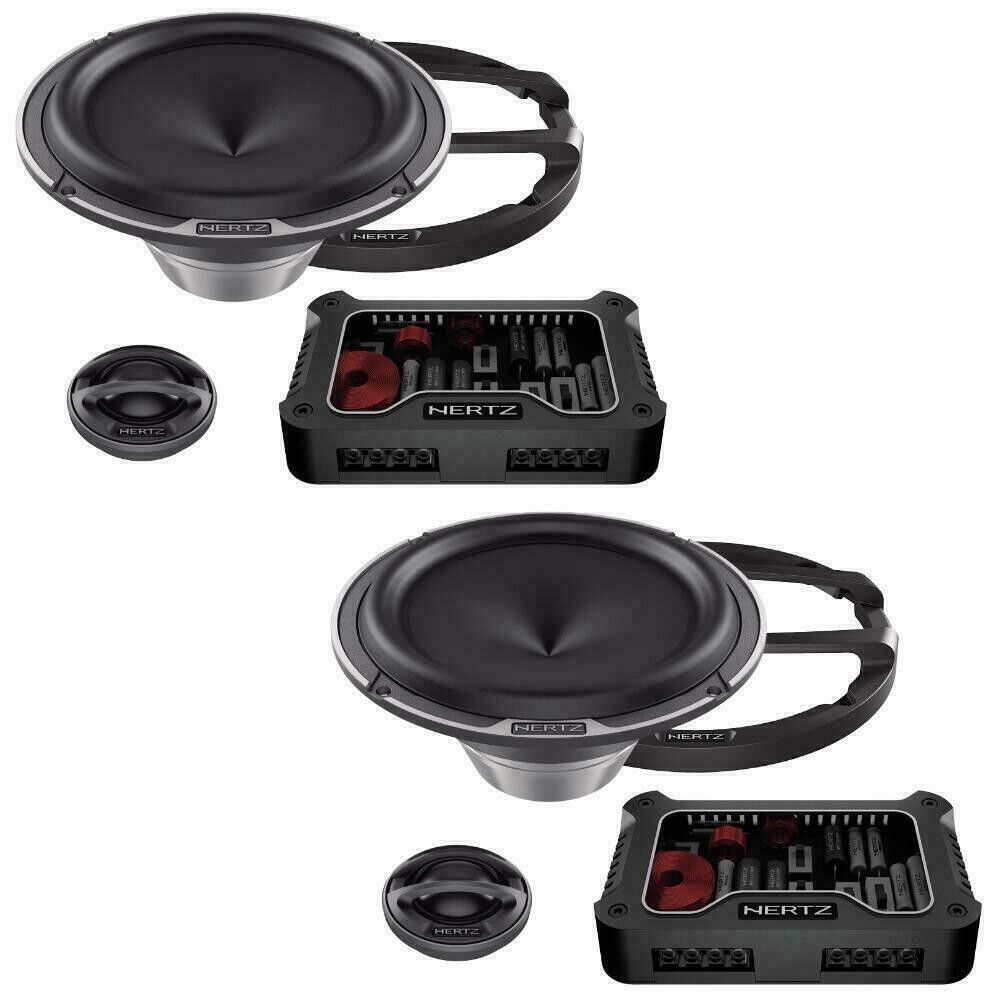

Hertz Mille Legend MLK 1650.3

Definitely offering more than the sum of its parts, this specifically designed 2-way system delivers performance above an beyond expectations. Care and attention to detail are the watch words for Mille speaker systems and the detail in the resulting sound proves this beyond doubt. However, detail can be disarming and neutralising without musicality. No issues on that score with this system. The Mille MLK 1650.3 system will immerse you in your favourite music every time.

Technical Specification

Size:

Woofer mm (in.) 165 (6.5)

Tweeter diaphragm mm (in.) 35 (1.38)

Crossover mm (in.) 195 x 119 x 41 (7.67 x 4.68 x 1.61)

Voice Coil Diameter:

Woofer mm (in.) 36 (1.4)

Tweeter mm (in.) 28 (1.1)

Power Handling:

W peak 300

W continuous 150

Impedance: 4 Ohms

Frequency Response Hz 40 - 28k

Crossover Woofer Lo-pass 6 dB/Oct.

Tweeter Hi-pass 12 dB/Oct.

Cut-off 2.5 kHz (Mid/Hi-Cont. = ON)

3.5 kHz (Mid/Hi-Cont. = OFF)

Adjustment Tweeter +2 / 0 / -2 dB

Hi-Boost ON / OFF

Hi-Contour ON / OFF

Mid-Contour ON / OFF

Bi-Amp ON / OFF

Weight of one component

Woofer kg (lb) 1.29 (2.84)

Tweeter kg (lb) 0.1 (0.22)

Crossover kg (lb) 0.57 (1.26)

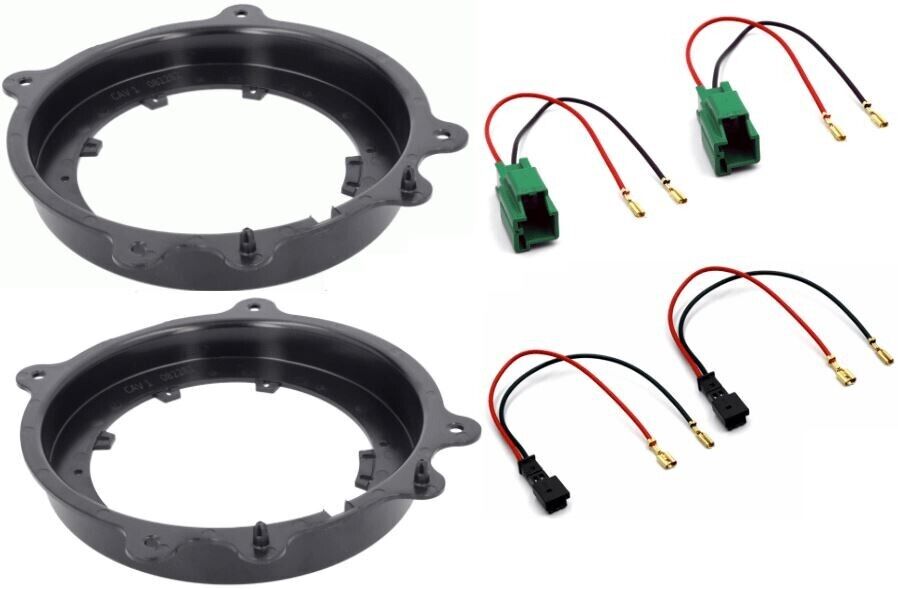

These Speakers also come with the correct Speaker Collars and wiring adapters.

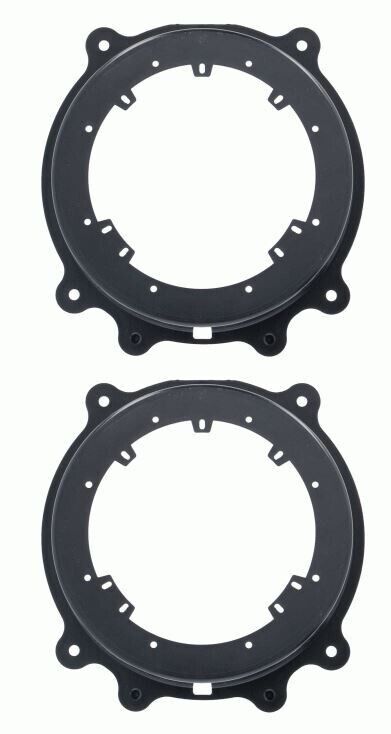

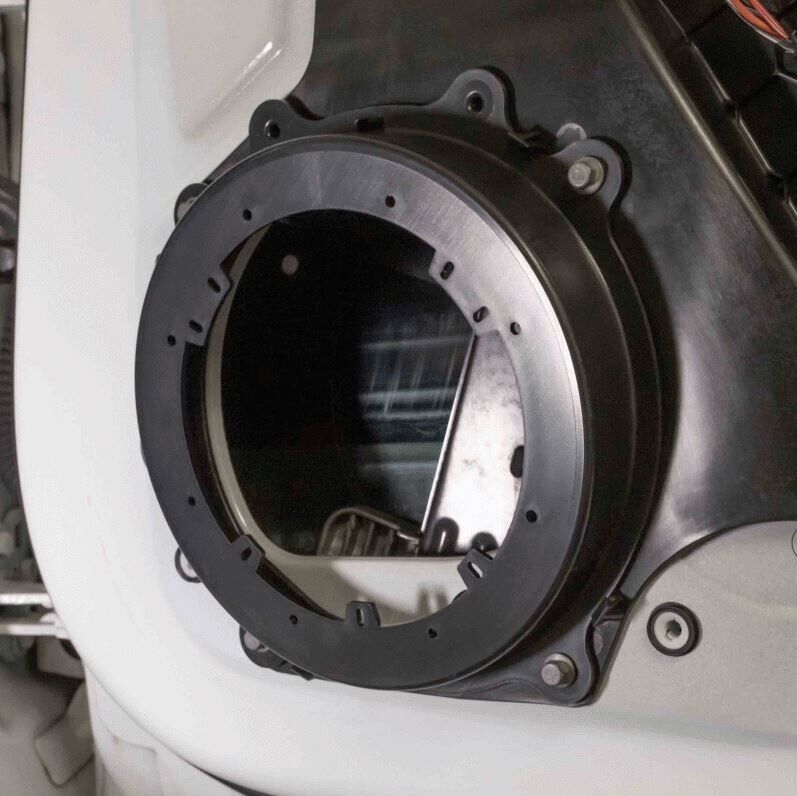

Tesla Model 3 and Model Y 165mm front door speaker adapter rings/panels

40-1833-165

A pair of front or rear door car speaker adapter panels for 165mm (6.5 inch) speakers.

These panels allow you replace the cars original speakers with new improved quality aftermarket speakers.

Fits the following vehicle doors:

Tesla

Model 3 (Front) 2017+

Model Y (Front) 2020+

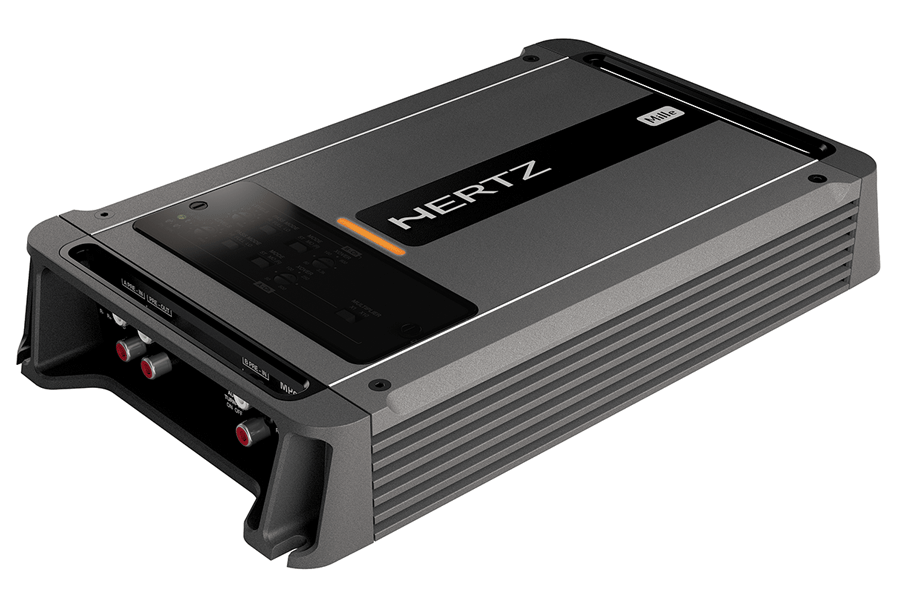

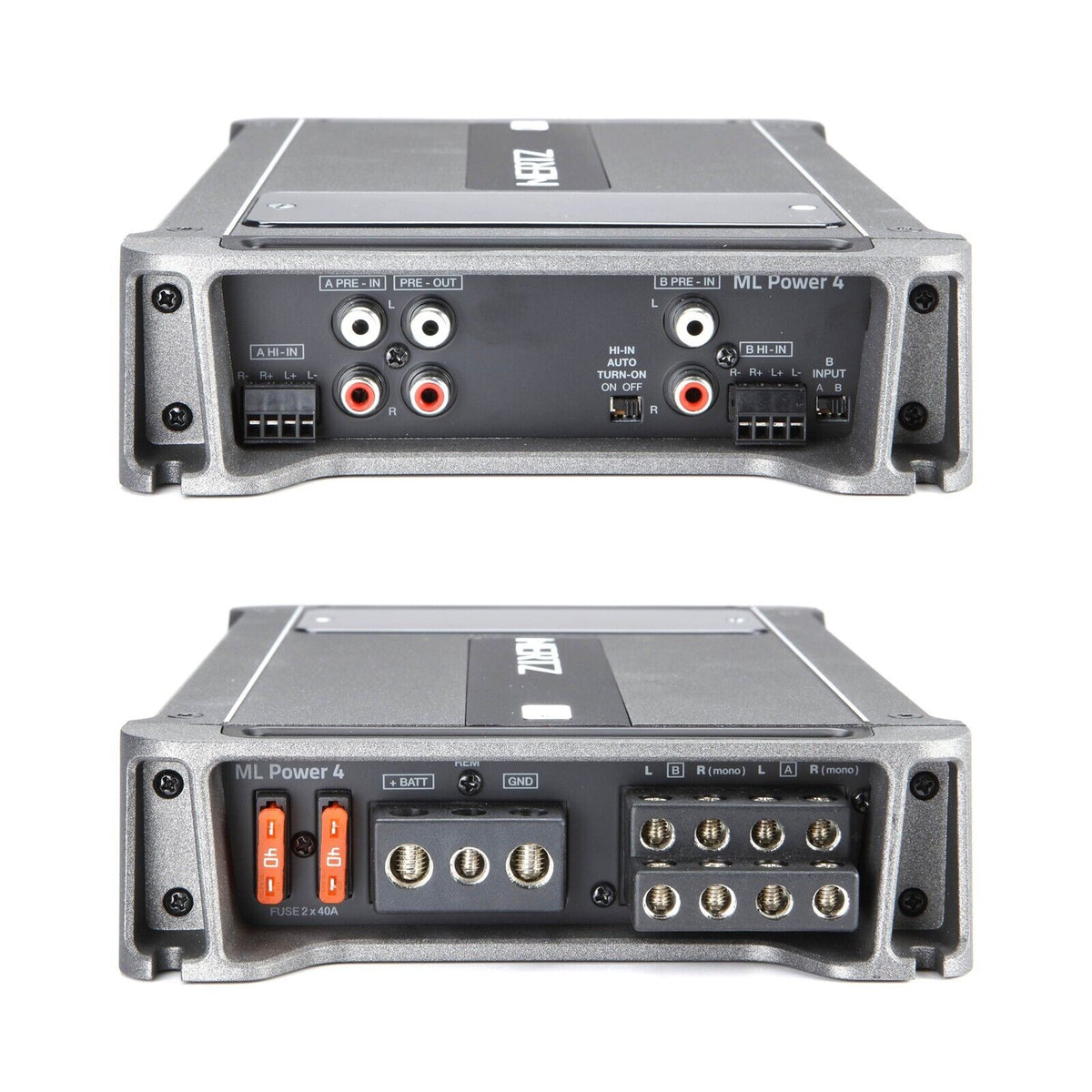

Hertz ML Power 4 4-Channel Amplifier

Last Product ImageHertz ML Power 4Next Product Image

Hertz Mille Power is redefining Class D amplification. With new hyper-efficient chassis design, the compact case size belies the brutish power available inside. Balanced high -level inputs ensure noise is kept to a minimum. This four-channel specimen can be run in four, three or two channel mode and is 2 Ohm stable. Bypass, Hi Pass and Lo Pass filters are all included.

Technical Specification

Channel mode: 4 - 3 - 2

Output Power (RMS) @ 14.4 VDC:

4 Ch 150 W x 4 (4 ohm)

4 Ch 250 W x 4 (2 ohm)

3 Ch 150 W x 2 (4 ohm) + 500 W x 1 (4 ohm)

3 Ch 250 W x 2 (2 ohm) + 500 W x 1 (4 ohm)

2 Ch 500 W x 2 (4 ohm)

Filters: Bypass, Hi-Pass (A: 50 - 5k @ 12 dB/Oct. - B: 80 - 3.3k Hz @ 12 dB/Oct.), Lo-Pass (A: 50 - 5k @ 12 dB/Oct. - B: 80 - 3.3k Hz @ 12 dB/Oct.)

Distortion - THD (100Hz @ 4 ohm): 0.08 %

S/N Ratio (A weighted @ 1V): 100 dB

Damping factor (100Hz @ 4 ohm): 80

Size W x D x H mm (in.): 170 x 289 x 46.70 (6.69' x 11.38' x 1.84')

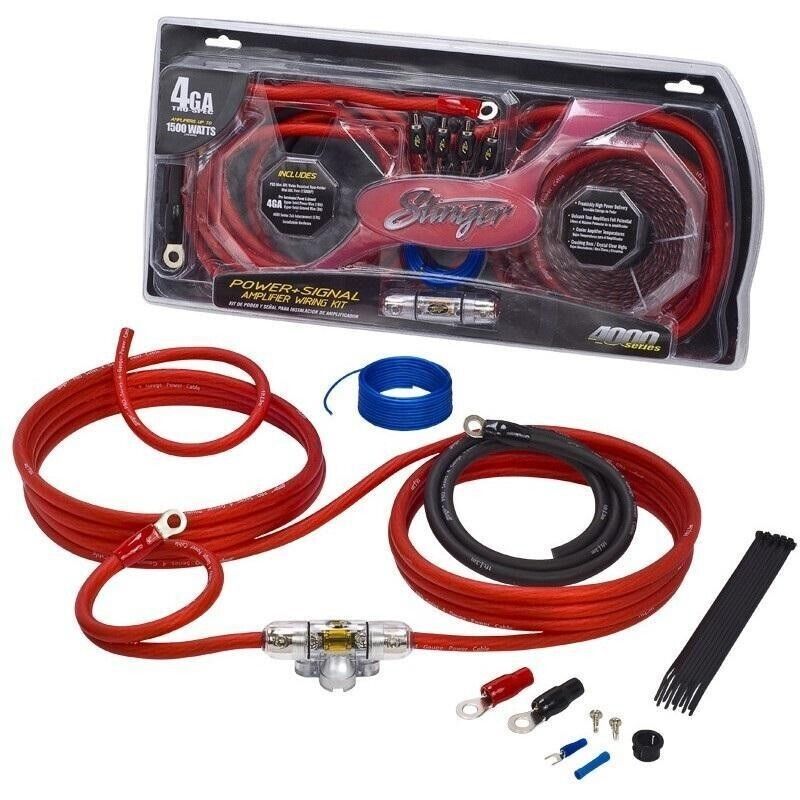

Stinger SK4641 Car Audio Power and Signal Wiring Kit 4 Gauge 100% Copper

Designed specifically for car audio systems up to 1500 Watts or 150 Amps

4000 Series, 2 channel audiophile grade interconnects

Made from 100% oxygen-free Copper for a pure uninterrupted transfer of power

Tru-Spec cables/wires

Tinned conductors for corrosion resistance

Mini-ANL (MIDI) Style Fuse Holder (SPD5801) for Maximum Power Delivery and Safety

Matte finish hyper-twist wire construction provides excellent flexibility

Pre-terminated power connections provide reliable performance

Includes:

18Ft. Matte Red Hyper-Twist 4GA Power Wire

3Ft. Matte Black Hyper-Twist 4GA Ground Wire

17Ft. Matte Blue 18GA Remote Turn-On Wire

SPD5101 AGU Fuse Holder

60 Amp AGU Fuse

4GA Crimp Ring Terminals Pre-Installed

16GA Blue Butt Connector

4GA Snap In Protective Firewall Grommet

Self Drilling Mounting Screws

(10) 7" Wire Ties
