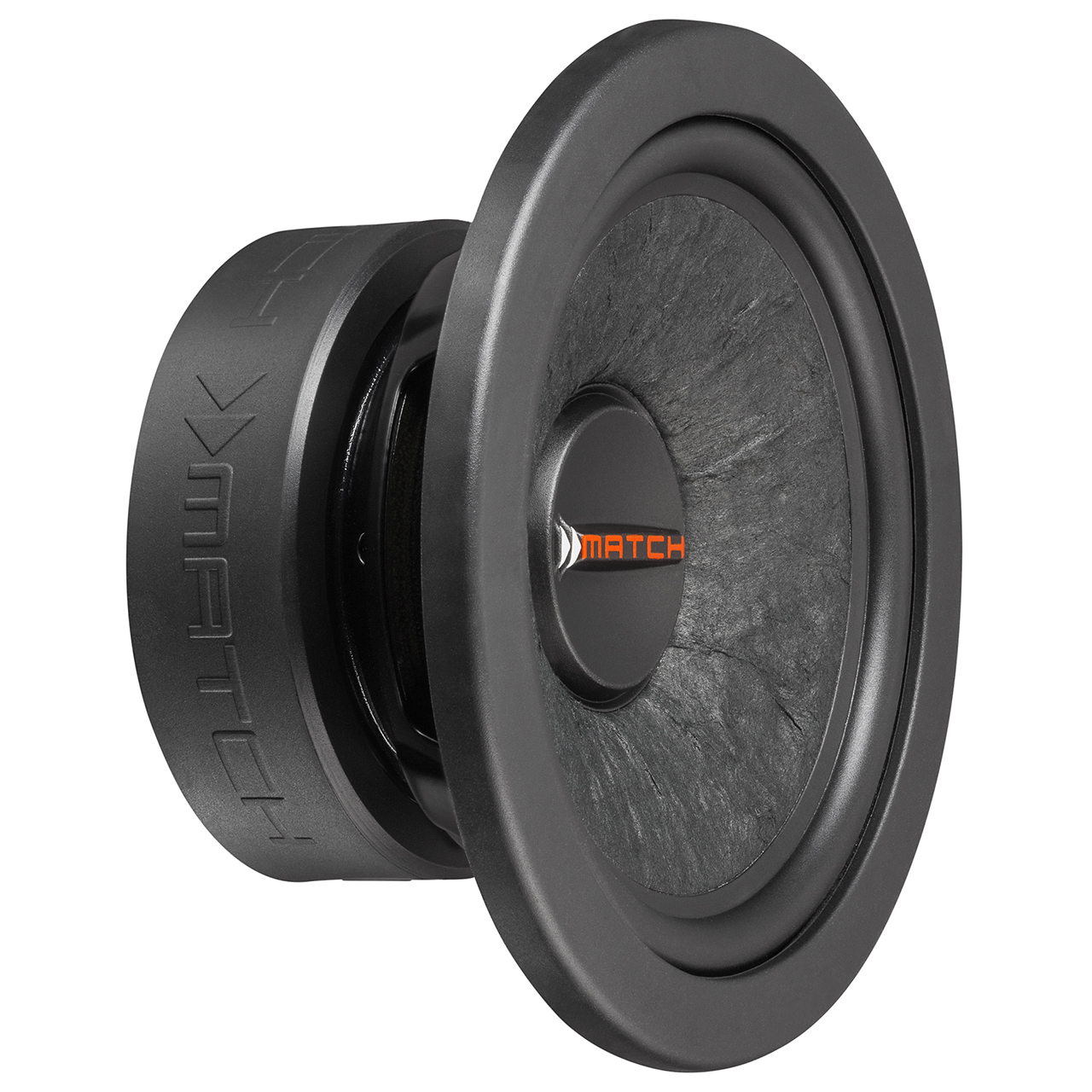

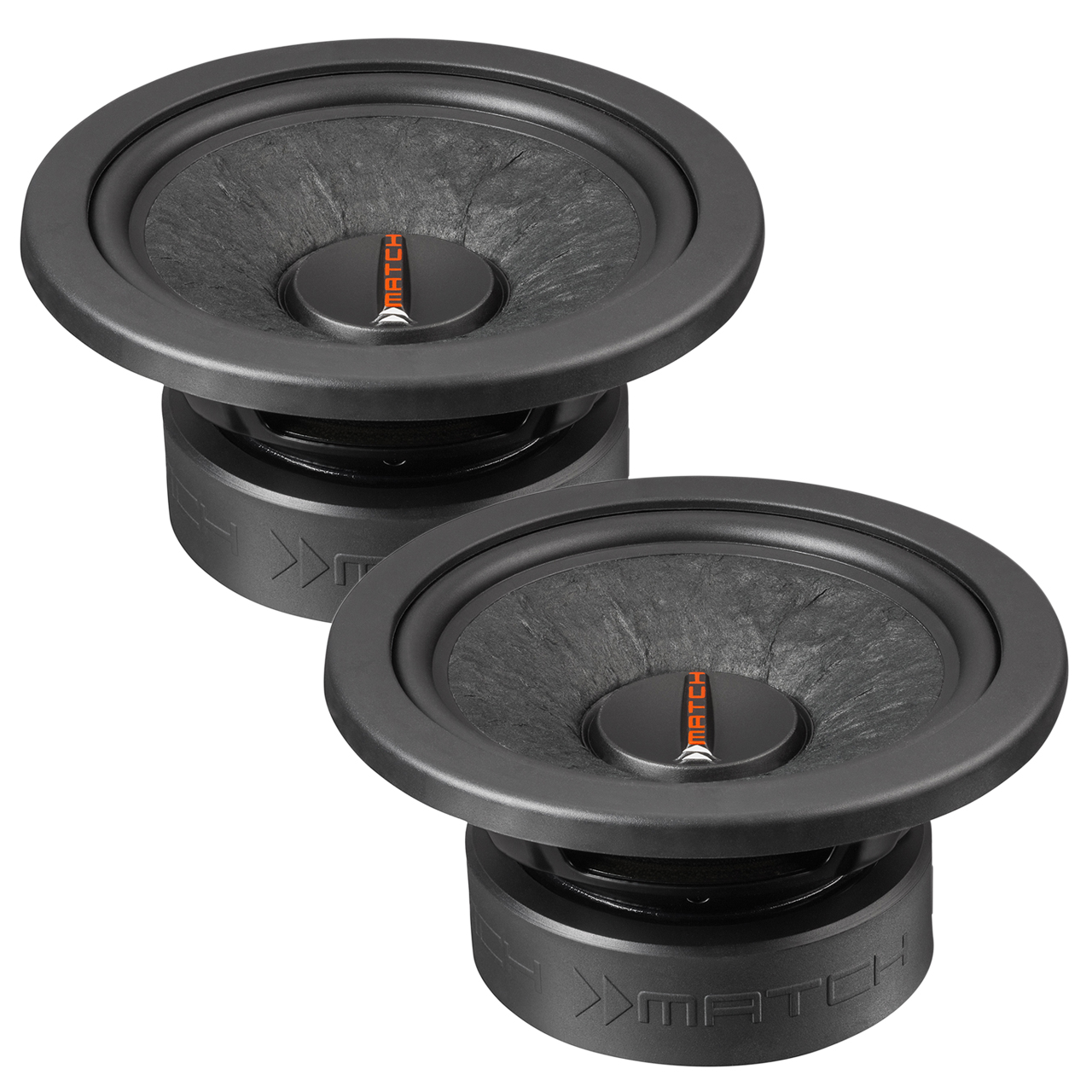

Match Pair of 6.5" 100W Plug & Play Subwoofers PP 72W-D

MATCH PP 72W-D

You didn't find the type of enclosure sub you are looking for? - If none of the MATCH Plug & Play enclosure subs fits in your car with respect to shape and / or size, then you have the chance to build your "personalized" version by yourself. Therefore, we offer the single woofers of our Plug & Play series, which are 100 % identical to the drivers that are used in the pre-loaded variants. As long as you choose the net volume and port tuning frequency according to the installation instructions, we guarantee the same acoustical performance as our "standard" subwoofers.

Features

• Extremely stiff, hand-scooped paper cones
• High-temperature resistant voice coils with large winding heights
• Double ventilated voice-coils for minimum compression effects
• Powerful magnets for compact-sized vented enclosures
• Optimized for the perfect interaction with MATCH Plug & Play amplifiers
• Connection terminal for MATCH subwoofer cable (PP-SC) included in delivery

Technical data

Power RMS / max.	P	100 / 200 Watts
Impedance	Z	2 x 2 Ω
DC resistance	Re	2 x 1.6 Ω
Resonance frequency	Fs	53 Hz
Mechanical Q factor	Qms	3.30
Electrical Q factor	Qes	0.41
Total Q factor	Qts	0.37
Compliance	Cms	350  µm/N
Equivalent air volume	Vas	7.9 L
Force factor	B*I	8 Tm
Efficiency 1 W / 1 m	SPL	87 dB
Cone area	Sd	125 cm²
Moving mass	Mms	25 g
Cone material		Hand-scooped paper cone
Mechanical resistance
