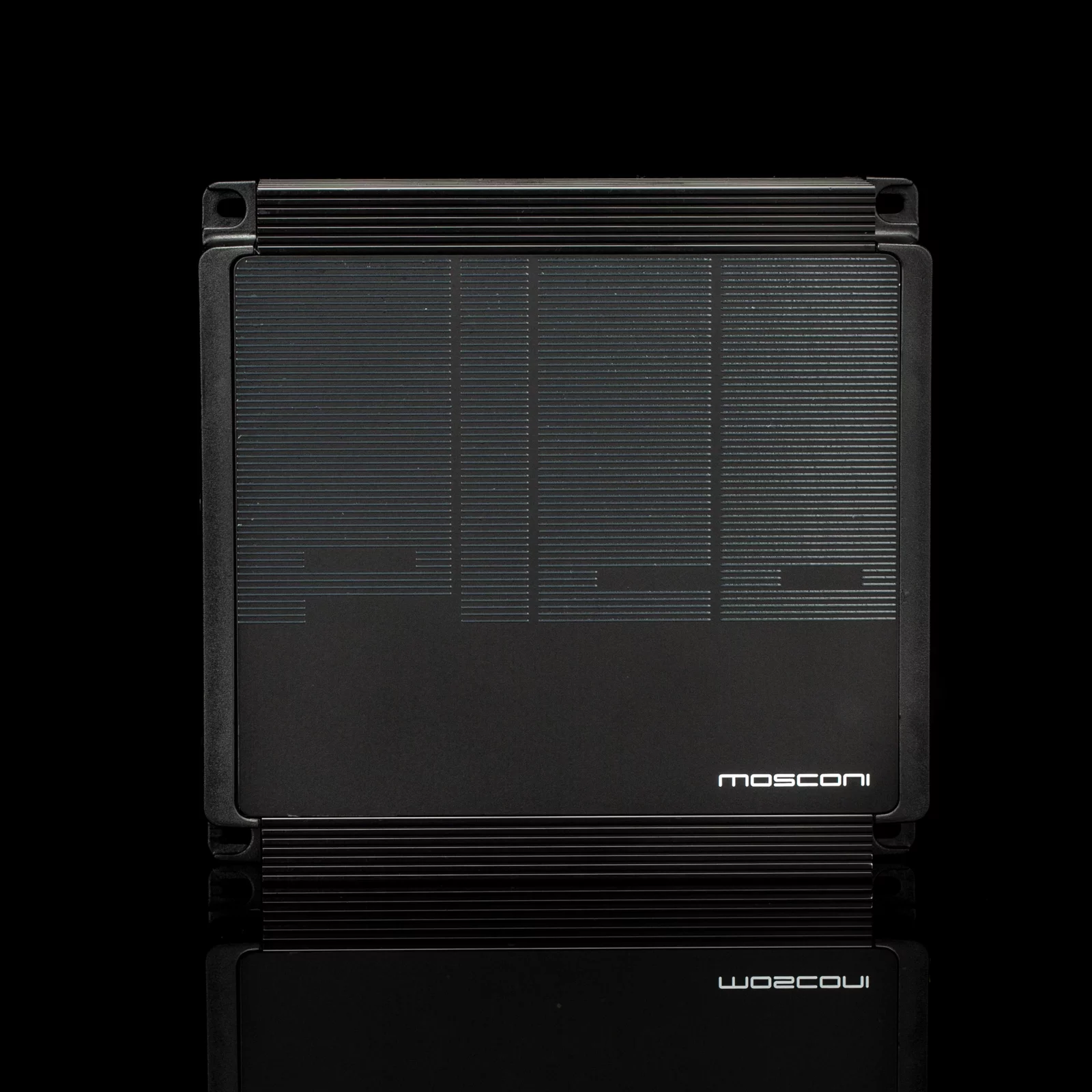

MOSCONI PICO V2 8|10 - 8 CHANNEL WITH 10 CHANNEL DSP CLASS D CAR AMPLIFIER

MOSCONI PICO V2 8|10 - 8 CHANNEL WITH 10 CHANNEL DSP CLASS D CAR AMPLIFIER

£759.00 GBP
£759.00 GBP
Sale Sold out
Tax included.

OVERVIEW MOSCONI PICO V2   8|10 DSP

With the PICO V2 8|10 DSP, MOSCONI is launching the second generation of PICO DSP amplifiers on the car hi-fi market. In addition to improved connectivity, the new PICO scores with increased sound performance and better efficiency.

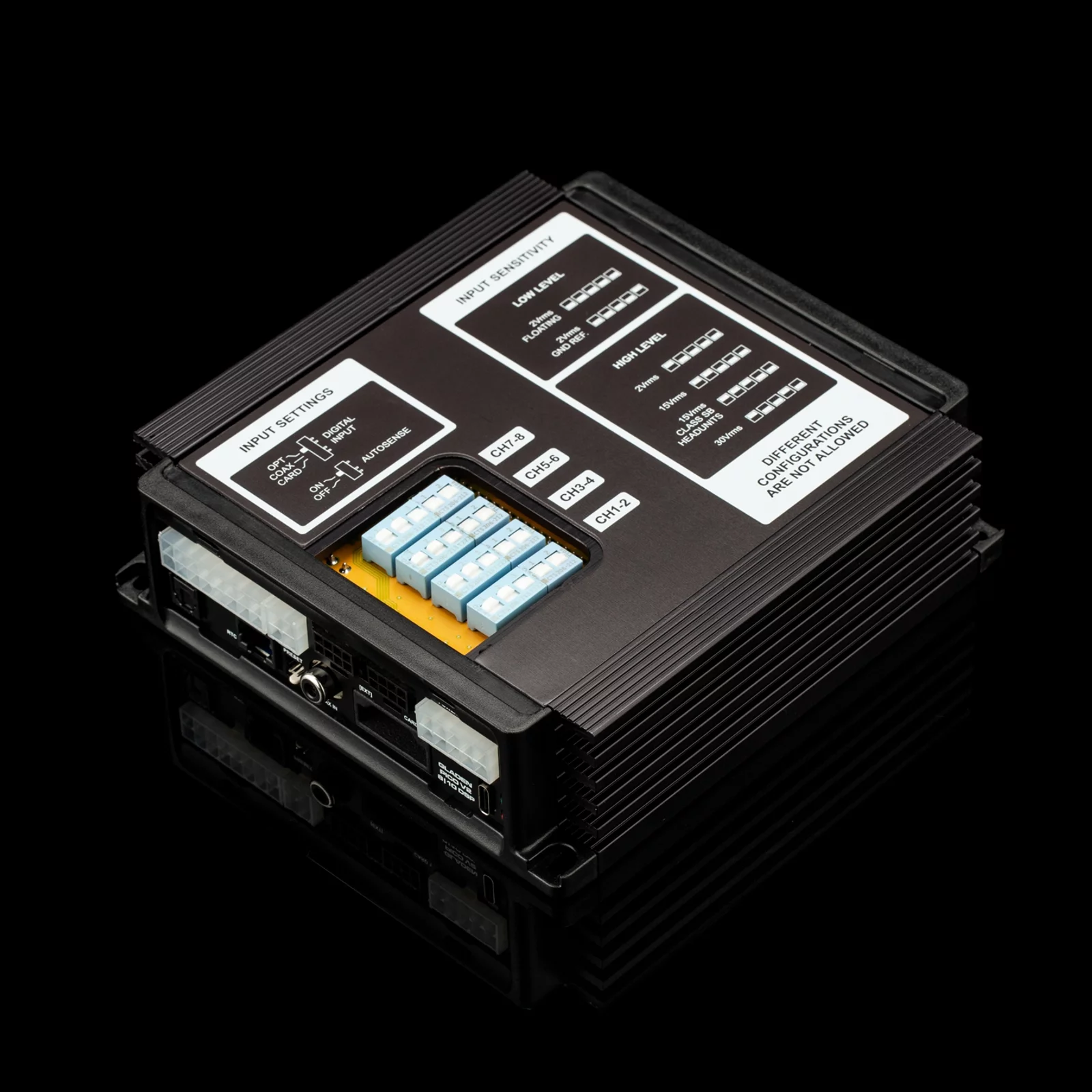

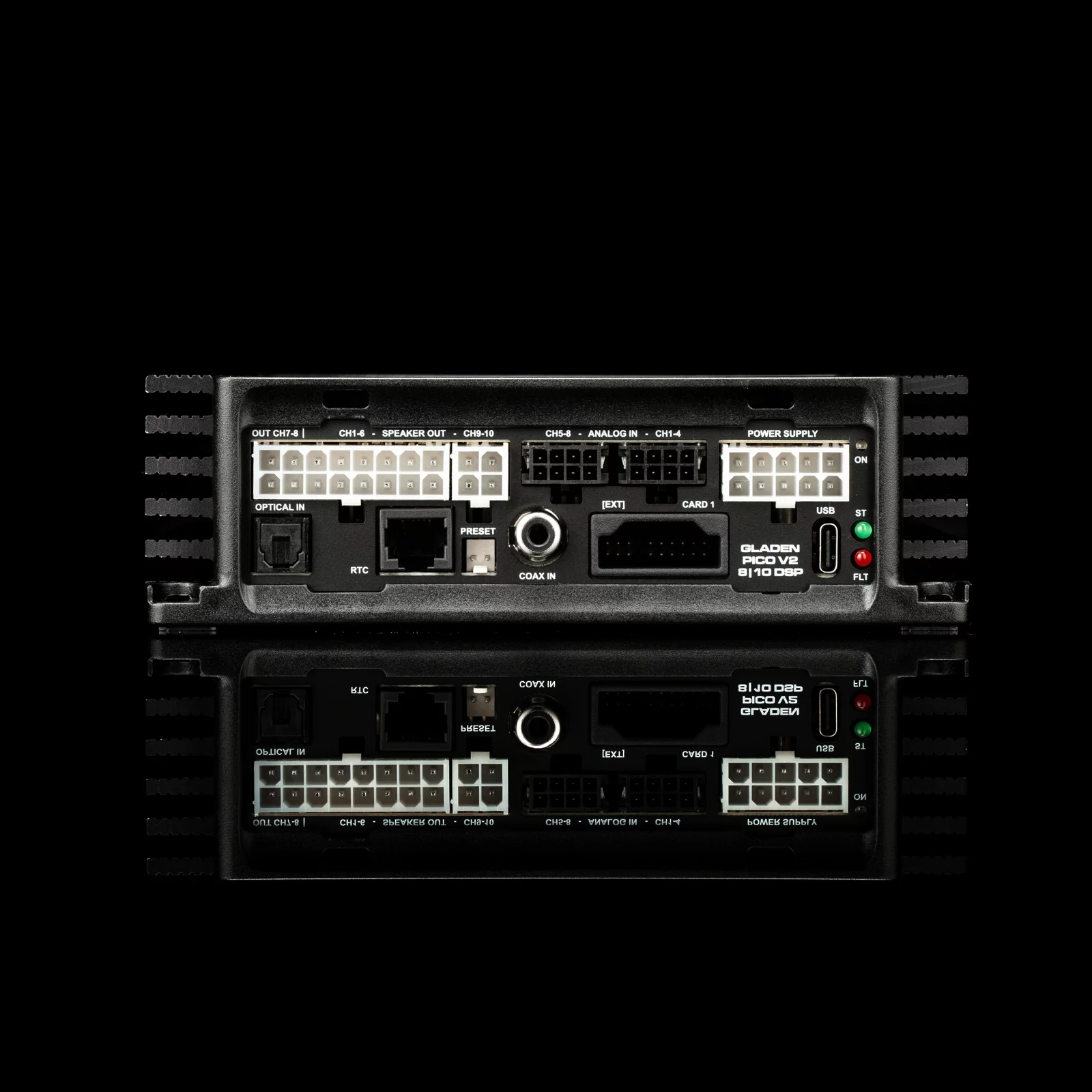

All connections are now located on one side and all relevant setting switches required for operation in modern vehicles are located under a magnetic housing cover.
Furthermore, all inputs are now high- and low-level capable. All desired DSP settings can now be made via a USB-C connection.



Perfect OEM integration:

Powerful DSP amplifier optimized for factory radio use. Eight analog inputs up to 30 V, flexible routing, 3 x input EQ and delay. With 4 x 50 Watts + 4 x 80 Watts ideal for active and semi-active systems, as well as classic front + rear + sub application. With two digital inputs (SP-Dif and BT+) and two processed line outs ready for the future.

Transducerless high-speed PWM power amplifiers:

High-efficiency PWM output stages with the fastest carrier frequency in the world today (> 2 MHz). The modulation is done without DAC directly from the 48 kHz TDM signal of the DSP, thus the noise floor goes to zero and THD+N ~ 0.02 % / 1 W.



INPUT:

  • 8 x analog inputs switchable (high level / low level) Class SB compatible, 2-30V
  • 1 x digital input SP-Dif optical (8 kHz - 96 kHz sampling rate)
  • 1 x digital input coax digital (8 kHz - 96 kHz sampling rate)
  • 1 x bluetooth port with SP-Dif - TTL (8 kHz - 96 kHz, e.g. for Mos_BTS bluetooth streaming module)
  • Bluetooth extended digital audio port (BT+)
    (flexible 8 kHz - 384 kHz synchronous digital input for audio sources with 2 - 16 channels, direct DSP access without jitter, e.g. for MOS BTS-LD4C BT streaming module or extended analog inputs)

DSP:

  • 912 MHz, 32-bit audio port, 64-bit core
  • Double precision 56 Bit filter calculation
  • Samplerate 96kHz

CONTROL:

  • 1 x remote connector (analog, for RTC.2 roti remote control)
  • 1 x BT+ control port (connection MOS-BT3.0 (app control), RC-Can (CAN bus control), MOS_USB2.0 (programming dongle), BTS-LD4C Highres Streaming Module, Gladiator Controller
  • 1 x remote out, 1 x remote in, auto remote for high level connection
  • Connections with MOLEX® plug contacts
  • Very small size with low heat generation, best suited for installation behind panels

SOFTWARE:

  • 3 x 9 band parametric input EQ (de-equalizing)
  • 6 x input delay 0 - 3 ms / 0.01 ms (de-delay)
  • 10 x input level control digital (signal conditioning)
  • Flexible mixer for signal routing
    (Side separated, can sum and subtract, 10 inputs to 4 x 2 output groups)
  • 6 x 30 band or 4 x 30 band + 2 x 15 band group EQ
    (parametric, relative phase remains stable)
  • 8 x 10 band output filters
  • Highpass / lowpass / highshelf / lowshelf / notch / allpass 1st + 2nd order / speaker-EQ)
  • 8 x speaker-delay 0 - 12 ms, 0,02 ms
  • 8 x speaker phase switch
  • Flexible phase control with calculation tool
  • Extensive integrated analysis tools
  • B.A.R.N.I.E. compatible

TECHNICAL DATA MOSCONI PICO V2   8|10 DSP

OUTPUT POWER/OUTPUT SIDE:

  • Output power @ 4Ω:

    4 x 50 Watts (channel 1 - 4) 3-Ohm stable (not bridgeable!)

  • Output power @ 4Ω:

    4 x 80 watts (channel: 5 + 6 / 9 + 10) 2-ohm stable / bridgeable

  • Output power @ 4Ω:

    4 x 45 watts + 2 x 210 watts (bridged channel: 5 + 6 / 9 + 10)

  • Line Out:

    2 x 2 Vrms Line Out outputs (channel: 7 + 8)

SPECIFICATIONS:

  • Input voltage:

    2Vrms (LL) - 15 Vrms (HL) by default - 30 Vrms (HL)

  • Overall efficiency:

    > 80 %

  • Auto-On (only High Level):

    Off - BTL

  • Dimensions:

    150 x 160 x 46 mm

  • Weight:

    1150 Gram
