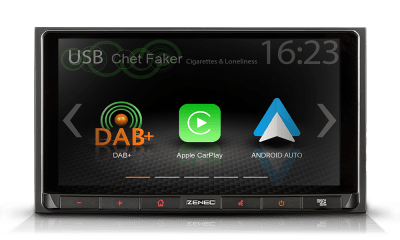

ZENEC N528 Double DIN head unit

ZENEC N528 Double DIN head unit

Brand new end-of-line stock. This item is discontinued / no longer being produced.

Feature-packed double din head unit. Connects with many sources via Apple CarPlay, Google Android Auto, USB, Bluetooth, HDMI, 2X AV Inputs, MicroSD card and 3.5mm jack socket. The unit also feature built in FM with RDS and DAB+. A 4 X 50watt internal amplifier for direct connection to speakers but also equipped with RCA line outputs for connection to an external amplifier. A selection of on-board sound features including time-alignment, 5-Band equalisation, onboard cross over and subwoofer settings. Information and control is via a sharp, clear 6.75" TFT capacitive touch screen.

Key details

• Brand: ZENEC
• Model: N528
• Type: Double DIN head unit
• SKU / MPN: Z02-N528

Technical specification

• Feature-packed double din head unit. Connects with many sources via Apple CarPlay, Google Android Auto, USB, Bluetooth, HDMI, 2X AV Inputs, MicroSD card and 3.5mm jack socket. The unit also feature built in FM with RDS and DAB+. A 4 X 50watt internal amplifier for direct connection to speakers but also equipped with RCA line outputs for connection to an external amplifier. A selection of on-board sound features including time-alignment, 5-Band equalisation, onboard cross over and subwoofer settings. Information and control is via a sharp, clear 6.75" TFT capacitive touch screen.
• 2-DIN DAB+ Infotainer
• DAB+ tuner with DAB<>DAB Service Following, MOT slideshow, DLS-text and Comfort Scan
• Google Android AutoTM
• Apple CarPlay
• Bluetooth 4.2 with hands-free module and A2DP music streaming
• Input for two camera systems with auto switching function and adjustable grid lines
• 1 x DIN FM antenna input socket
• 1 x SMB DAB antenna input socket with switchable 12 V phantom power supply
• 2 x RCA A/V input for camera video signal (CVBS) with switched power supply
• 1 x USB(1) 2.0 port with ~2,000 mA charging current for Apple iOS and Android smartphones
• 1 x USB(2) 2.0 port for file*2 playback from USB memory devices
• 1 x 3.5 mm jack connector for external Bluetooth microphone
• Bluetooth 4.2 module with hands-free function

Condition

Brand new end-of-line stock. Please see photos for packaging condition.

Compatibility

Please check the model number, size and fitment before buying.
